Adjustable pedestals for terraces
NIVO pedestals constitute the professional solution for installing terraces on any type of stabilized soil.
The rotating screw system allows a micrometric adjustment height by simply rotating the ring. Precisely adjustable in height, they allow the installation plan to be adjusted and stabilized, even on uneven ground.
The rspeed of implementation simplifies setting without complex tools. The pedestals offer a stable and economical foundation for each residential or commercial terrace project, in tiled slab or wooden joist.
Each resistant stud supports up to 1000 kg of centered compression load.
Three models for all your projects
The NIVO range is available in three types of pedestals depending on the coating chosen.

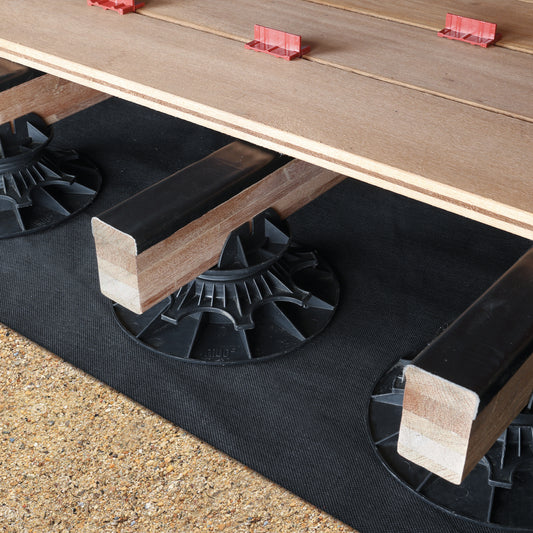

The pedestals for joists have a head with L-shaped side fixing for screwing and holding wooden or composite joists. They are suitable for terraces on exotic, resinous or composite wood pedestals.

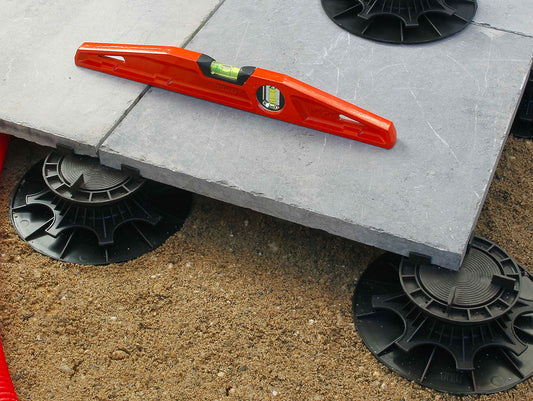

The pedestals for slabs incorporate breakable lugs which accommodate any format of slab for terrace in porcelain stoneware tiles, concrete or wood.
Five heights available from 25 to 240 mm, extendable up to 530 mm with stackable extensions. An optional slope corrector compensates for height differences of 2 to 5%. The 20 cm wide base guarantees great stability on soft ground.
Technical installation and advantages
The installation of NIVO pedestals is carried out directly on stabilized soil, concrete slab or waterproofing membrane. The rotating screw diameter provides excellent adjustment stability.

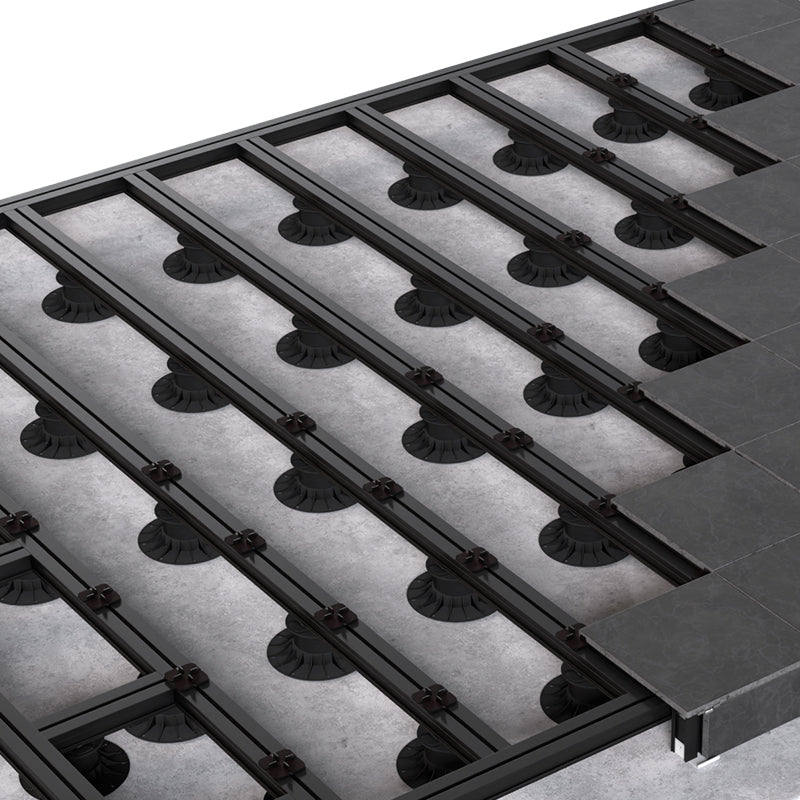

The joist pedestal head allows lateral or vertical screwing depending on the constraints of the project. The aluminum overhang clips onto the slab pedestals to receive the 60 mm STRUCTURAL joists. The system facilitates the passage of cables and pipes under the structure.
The flow of water is ensured by the space between the floor and the covering which also ensures good ventilation.
A quick and versatile solution
NIVO pedestals simplify the creation of terraces on pedestals without requiring a poured concrete slab. This quick and practical solution is suitable for composite decking as well as tiled decking.
The system adapts to all irregular floors, sloping or with significant differences in height.
Leveling is done in seconds with a simple twist. This versatility makes NIVO plots a preferred choice for professionals demanding deadlines and ease of execution.
System benefits and accessories
The main advantage of NIVO plots lies in their complete integration into the Cobra ecosystem.

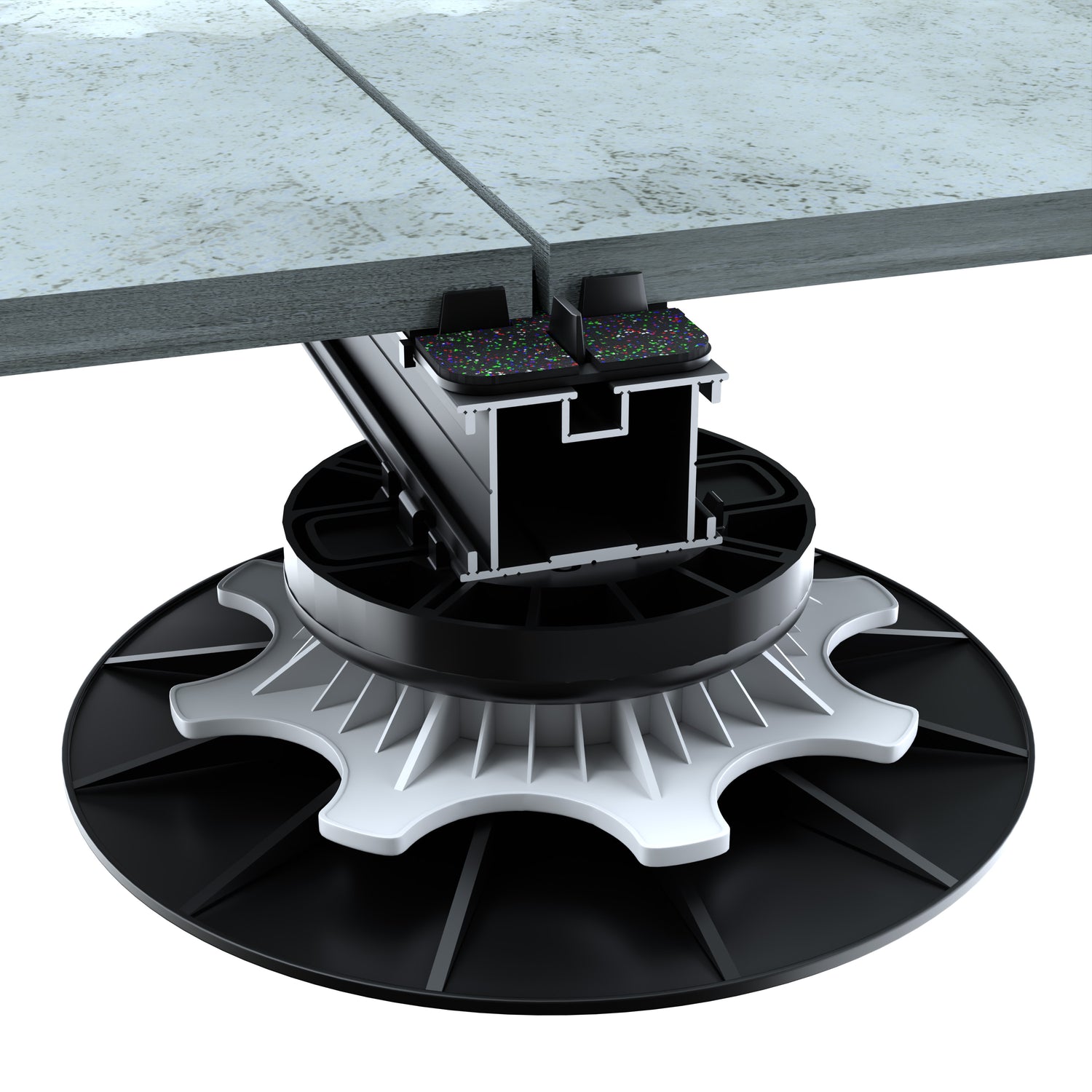

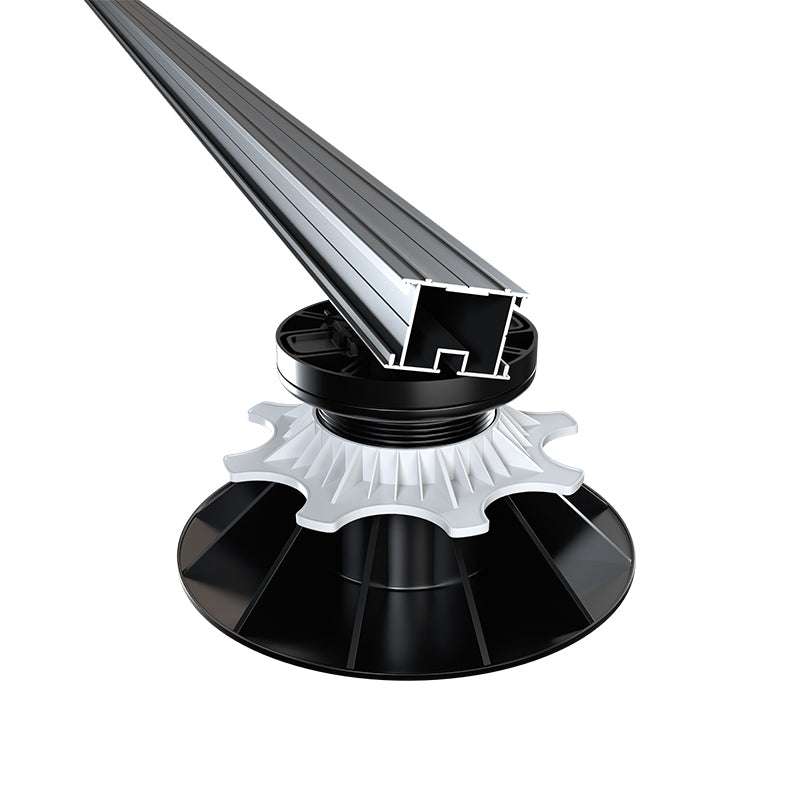

The aluminum overhang clips directly onto the slab supports to receive the 60 mm STRUCTURAL joists, creating technical continuity between foundation and structure. This native compatibility with the aluminum framework system offers a coherent overall solution: adjustable pedestals, rot-proof joists, HYBRID clips for invisible fixing. A single supplier for the entire terrace project guarantees the compatibility of components and simplifies site management.

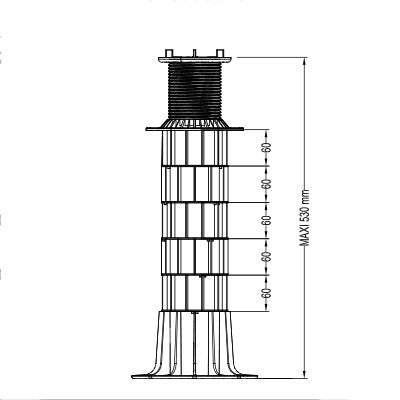

The additional accessories adapt perfectly to the system: slope corrector to compensate for differences in height of 2 to 5%, stackable extensions up to 530 mm in height, shock absorber to limit the sound effect. The optimal installation time is reduced compared to traditional foundations.
Installation is carried out without specialized tools on stabilized earth, concrete slab or waterproofing membrane. The system allows the joists to be fixed in a stable and efficient manner, at a regular distance according to DTU rules.
What are the advantages of NIVO adjustable pedestals?
NIVO pedestals are distinguished by their level of quality superior to the market average.
The exceptional resistance of 1000 kg per pedestal is systematically validated by laboratory tests, guaranteeing absolute reliability on all construction sites.
The high-strength polypropylene used offers incomparable durability against UV, frost and bad weather.

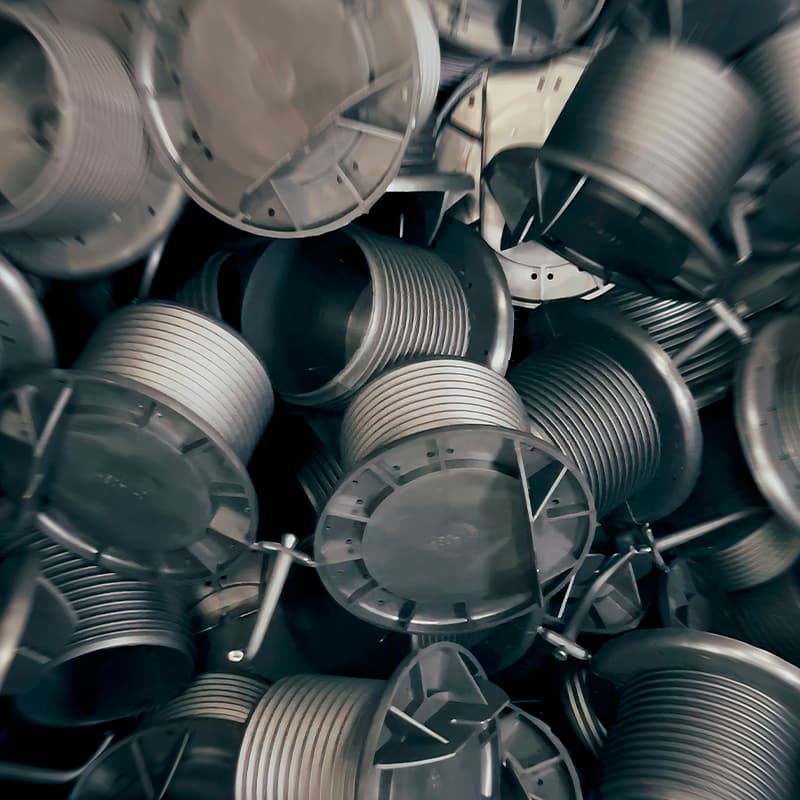

The French manufacturing (in a factory 15 minutes from our headquarters) allows rigorous control over each batch produced.
The optimized rotating screw diameter and wide base ensure maximum structural stability.
The versatility of the L-shaped side bracket facilitates installation in all jobsite configurations, unlike single-tab systems limiting mounting options.
| Caractéristique | Plots NIVO | Plots standards marché |
|---|---|---|
| Charge admissible | 1000 kg par plot (validé laboratoire) | 500 à 1000 kg (non systématiquement testé) |
| Diamètre embase | Ø 20 cm (314 cm²) | Ø 15-20 cm selon marques |
| Diamètre vis rotative | Large diamètre pour stabilité optimale | Variable selon fabricants |
| Matériau | Polypropylène haute résistance | Polypropylène qualité variable |
| Plage de réglage | 25 à 530 mm (avec réhausses) | 25 à 470 mm généralement |
| Fabrication | France - Matériaux recyclés | Import majoritaire de Chine |
| Conformité | DTU 43.1 et 51.4 | Conformité à vérifier |
| Tests validation | Tests laboratoire systématiques | Non systématique |
| Système de fixation lambourde | Support latéral en L - vissage latéral ou vertical | Languette verticale uniquement |
| Compatibilité STRUCTURAL | Surplot pour clipsage lambourdes alu 60mm | Non compatible |
| Pré-assemblage usine | Oui - plots préassemblés | Assemblage sur chantier fréquent |
| Réhausse empilable | Jusqu'à 5 réhausses | 3-4 réhausses maximum |
| Résistance UV et intempéries | Garantie longue durée | Variable selon qualité matériau |
A perfect pose, quite simply.
The quality of a terrace depends on its installation. This is why, beyond our innovative bindings, we share our expertise : follow our guides and professional advice for simple, quick and flawless installation. With Cobrafastener, ensure impeccable and long-lasting results.
