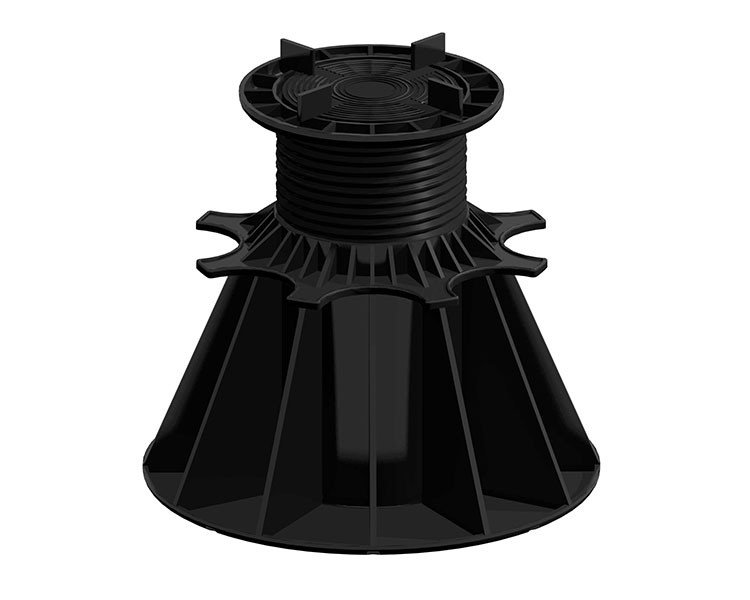

NIVO® pedestal for slabs
An adjustable slab support, robust and simple to install
- To set and elevate paving from 25 to 530mm high
- Pedestal head with slab support
- Height adjustment with micrometric screw
- Supports up to 1000 kg
- Made of recyclable polypropylene
Define how many pedestals you need for your paving project with our online calculator
To calculate the number of pedestals required for your deck project, it's easy with our online calculator. Simply enter the surface area of your deck, the joist spanand joist height : our calculator does the rest and gives you the number of pedestals required for your project.
Installation
40 to 60mm
50 to 80mm
80 to 140mm
140 to 230mm
>> 560mm with height extensions
CaCO3
60mm height extension
2 to 5° adjustment shim

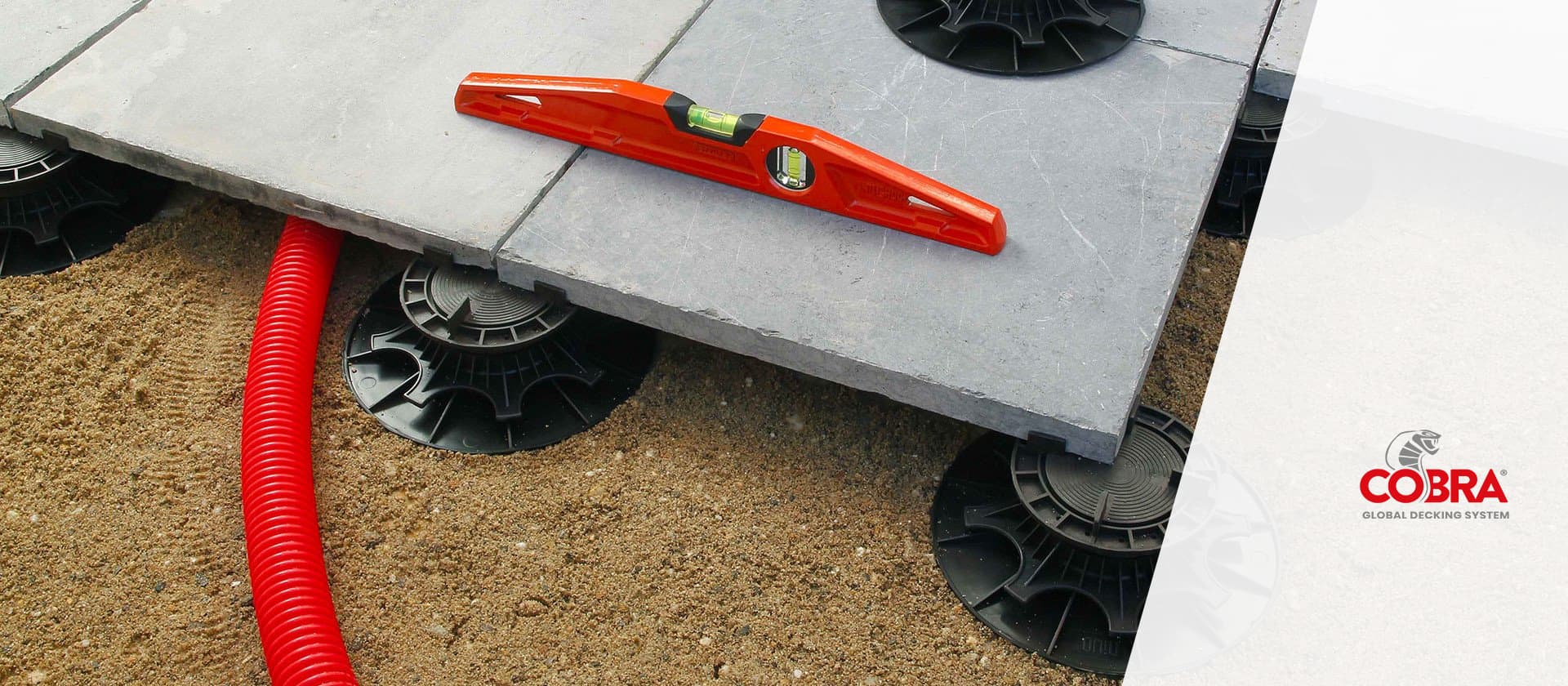

Set slabs from 25 to 530mm in height

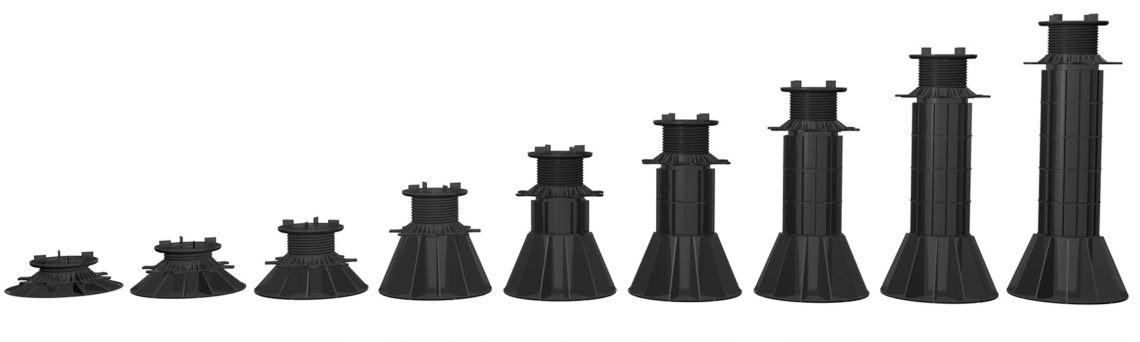

NIVO® pedestals for concrete, ceramic or wood slabs are available in 5 heights from 25 to 240 mm, with the possibility of raising them up to 530mm with the addition of 5 extensions.
All our NIVO® slab pedestals, adjustable in height with micrometric screws, ensure the laying of your terrace with excellent precision. The quality of the material used allows us to guarantee a strong weather and U.V resistance and a remarkable stability.

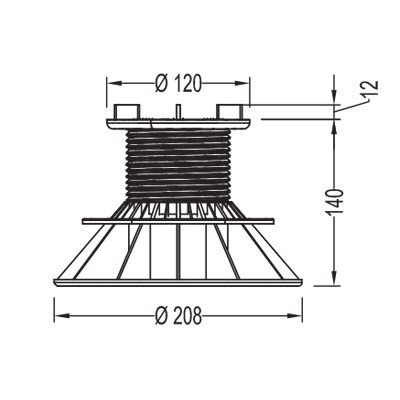

The NIVO® pedestals have a base of Ø20cm (= 314cm²) that is wide enough to prevent the work from sinking on stabilized ground. The diameter of the rotation screw is one of the widest on the market, thus offering excellent stability of the pedestal.
The maximum allowable load per pedestal is 1000 kg. (Compression test available on request)

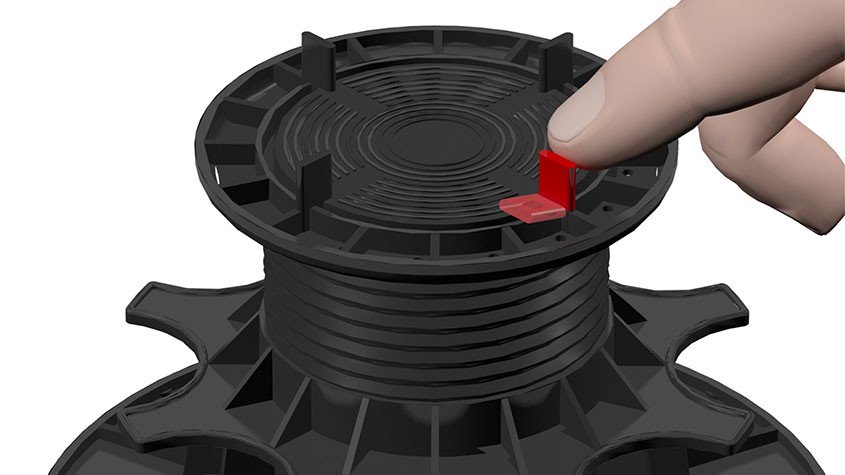

Breakable lugs

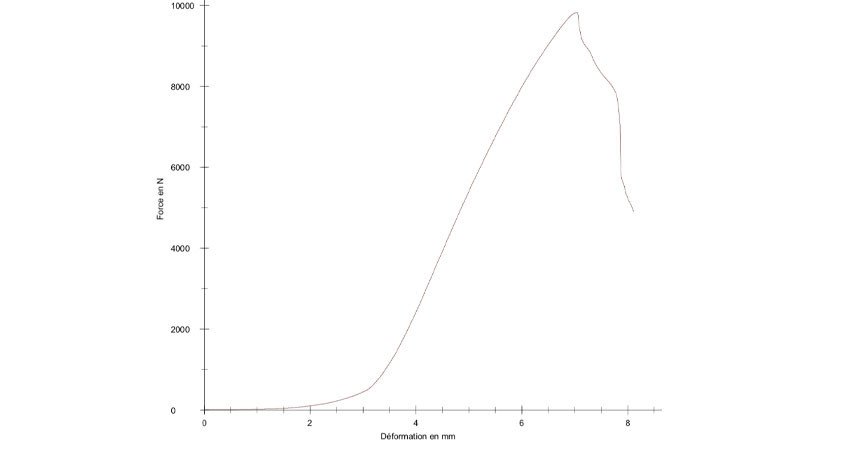

A resistance of 1000 kg
NIVO® paving pedestals, tested in laboratory, offer a compressive strength of 1000 kg.

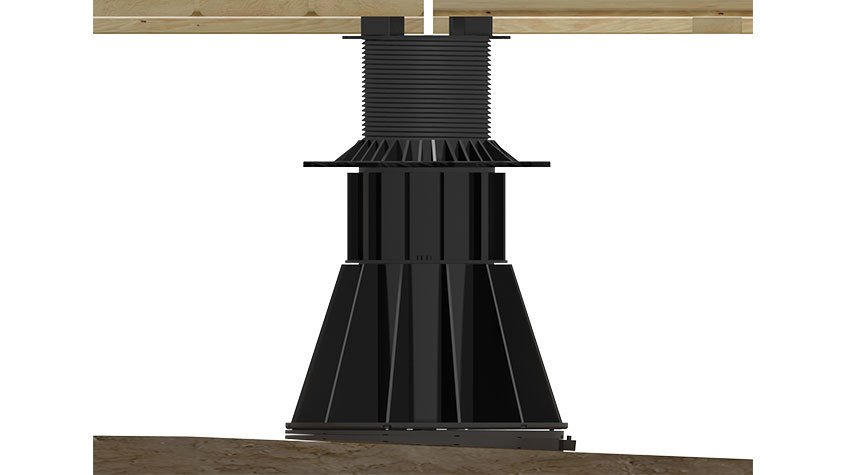

Slope corrector up to 5°

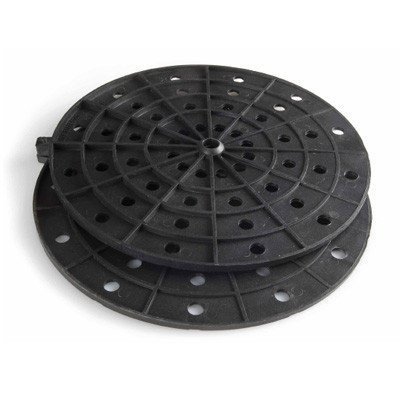

NIVO® pedestals can compensate for slopes of up to 5°. The slope correctors consist of two discs that are assembled and positioned under the base. Adjustment is made by simply rotating the two discs together.
Technical specifications
Depending on the size of the pedestal
-

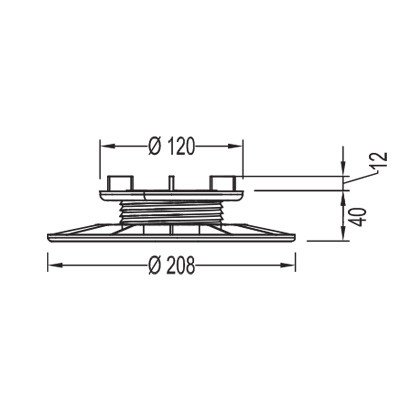

25 - 40 mm- - min opening: 25 mm
- - max opening: 40 mm
- - weight: 0.17 Kg
-
40 - 60 mm- - min opening: 40 mm
- - max opening: 60 mm
- - weight: 0.23 Kg
-
50 - 80 mm- - min opening: 50 mm
- - max opening: 80 mm
- - weight: 0.26 Kg
-

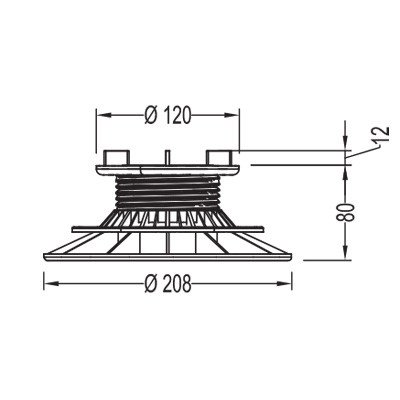

80 - 140 mm- - min opening: 80 mm
- - max opening: 140 mm
- - weight: 0.33 Kg
-

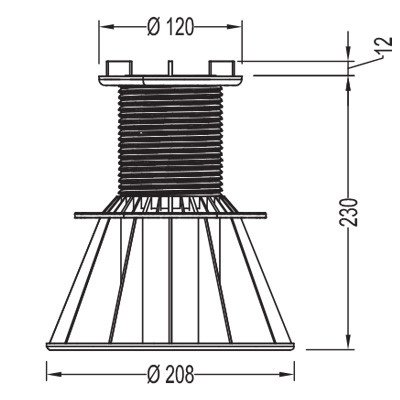

140 - 230 mm- - min opening: 140 mm
- - max opening: 230 mm
- - weight: 0.51 Kg
-
140 - 230 mm with extensions- - min opening: 230 mm
- - max opening + 5 extensions : 530 mm

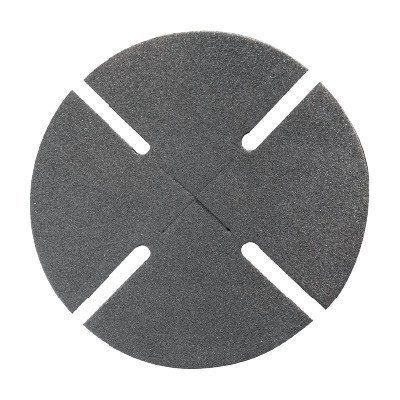

The dampening pad helps cushion shocks and improves the acoustic comfort of your terrace.

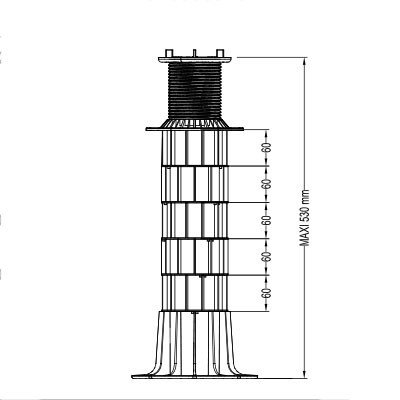

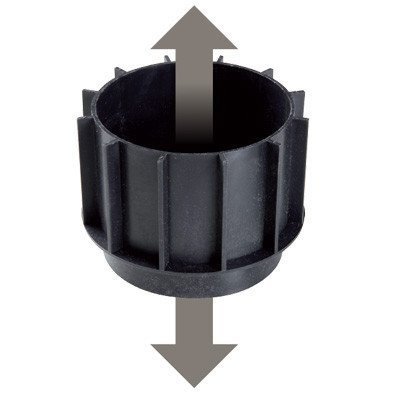

60mm extension for 140-230mm pedestal. Stack up to 5 risers on top of each other to reach a maximum height of 530 mm while keeping a stable base.
The NIVO® slope corrector ensures a slope correction from 2 to 5% of height difference.

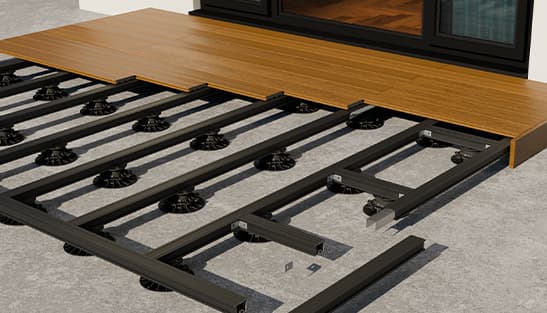

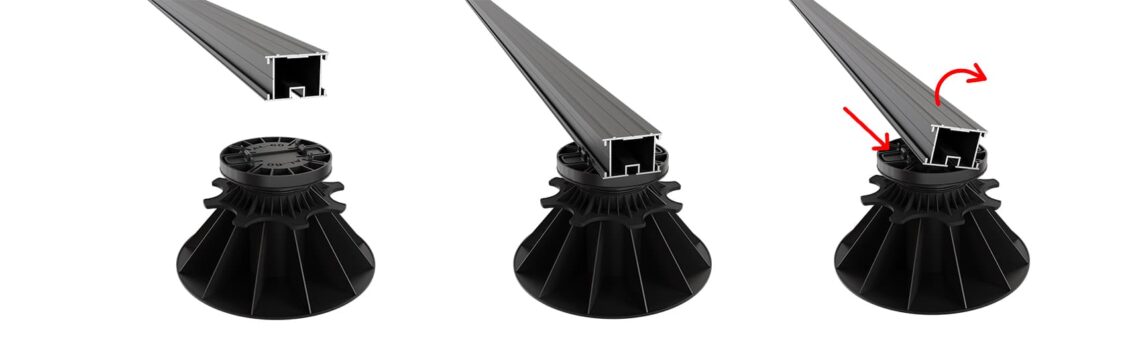

The NIVO® head cap is used on top of paving pedestal to clip on the Structural® aluminum joists.

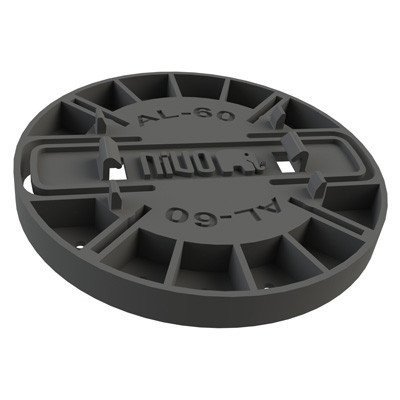

Optional: NIVO® head cap Surplot to clip on STRUCTURAL® aluminum joists
NIVO® paving pedestal can be equipped with a 1 cm thick "Surplot" cap that fit on the pedestal head to clip and unclip easily the 60mm wide aluminum joists of the Structural® framing system.
