Joist pedestals NIVO®
To install and to level your decking joists
- To set the decking joists from 25 to 530 mm
- Pedestal head with joist support
- Height adjustment by micrometric cylinders
- Supports up to 1000 kg
- Made of recyclable polypropylene
Online calculator for decking projects
To calculate the number of pedestals required for your deck project, it's easy with our online calculator. Simply enter the surface area of your deck, the joist spanand joist height : our calculator does the rest and gives you the number of pedestals required for your project.
40 to 60 mm
50 to 80 mm
80 to 140 mm
140 to 230 mm
Slope corrector from 2 to 5°
Quick and easy installation
Thanks to its rotating screw system, the NIVO® pedestal makes the installation very easy. The level adjustment of the structure is simplified to the maximum. The rotation of the ring on the base adjusts the height according to the direction of rotation.
The use of NIVO® pedestals allows an impressive speed of installation. The instalation of the structure and the setting of a decking becomes simpler and faster. Save considerable assembly time.

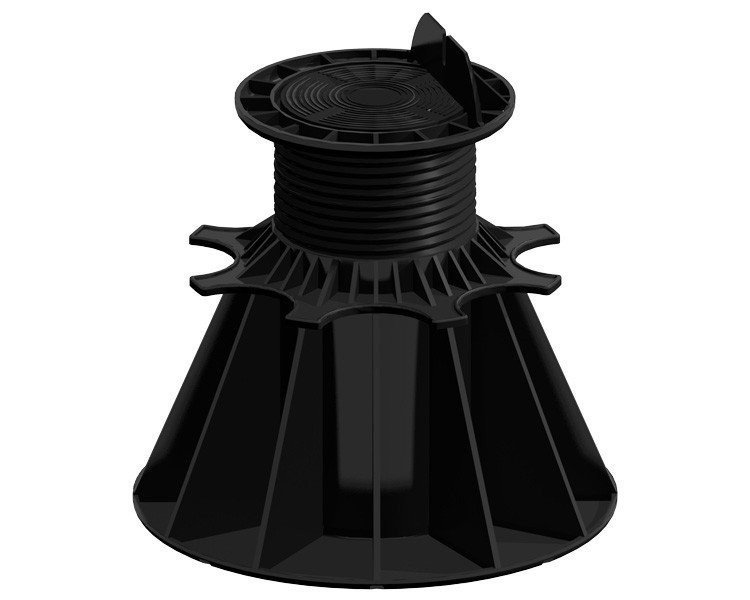

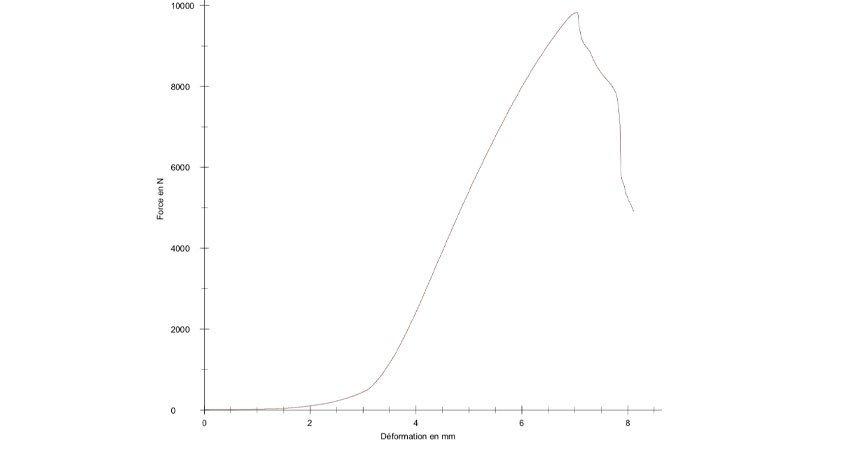

A solid and robust pedestal
Each NIVO® pedestal can support up to 500kg of centred compression load, on the highest position. The quality of the material ensures a high degree of strength and stability, and can withstand all kinds of environments.

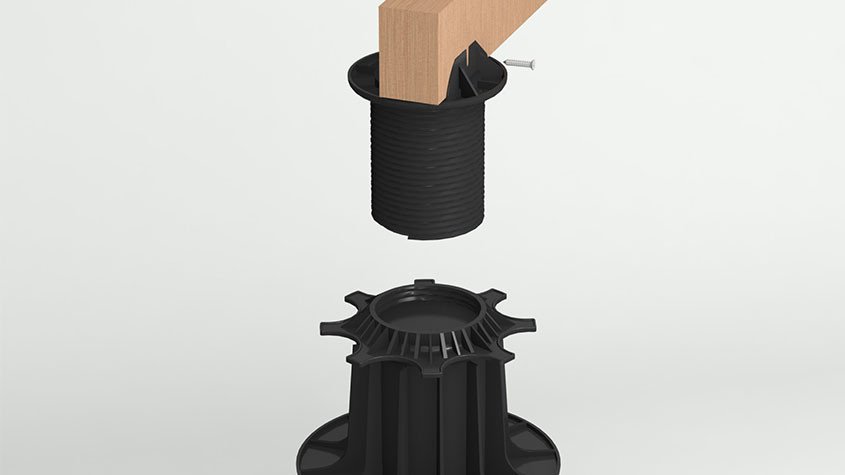

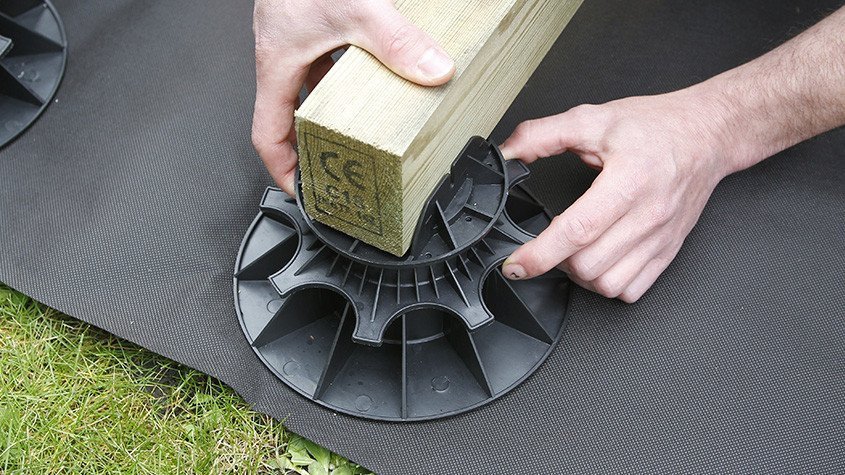

A pedestal head for joist
The NIVO® pedestal joist heads have been adapted to fix wooden joists. The L-shaped bracket allows screwing on the side to effectively maintain the joist on the pedestal.
Screwing can also be done from above the joist and thus through the pedestal head.

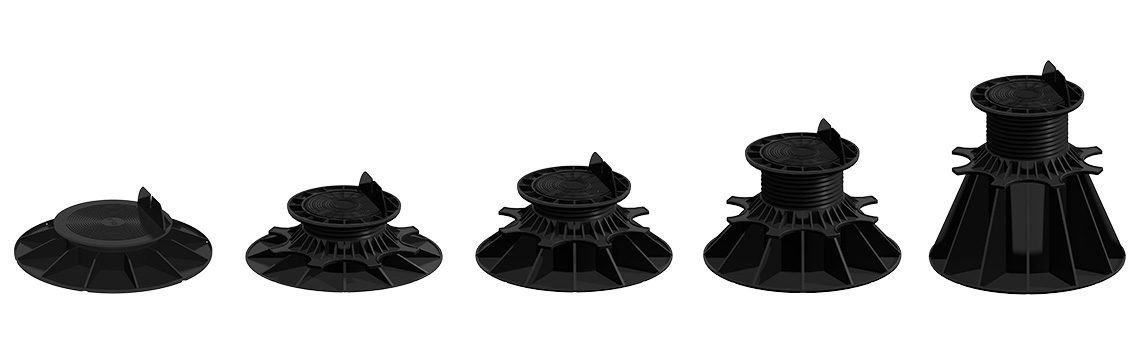

NIVO® adjustable pedestals for joists

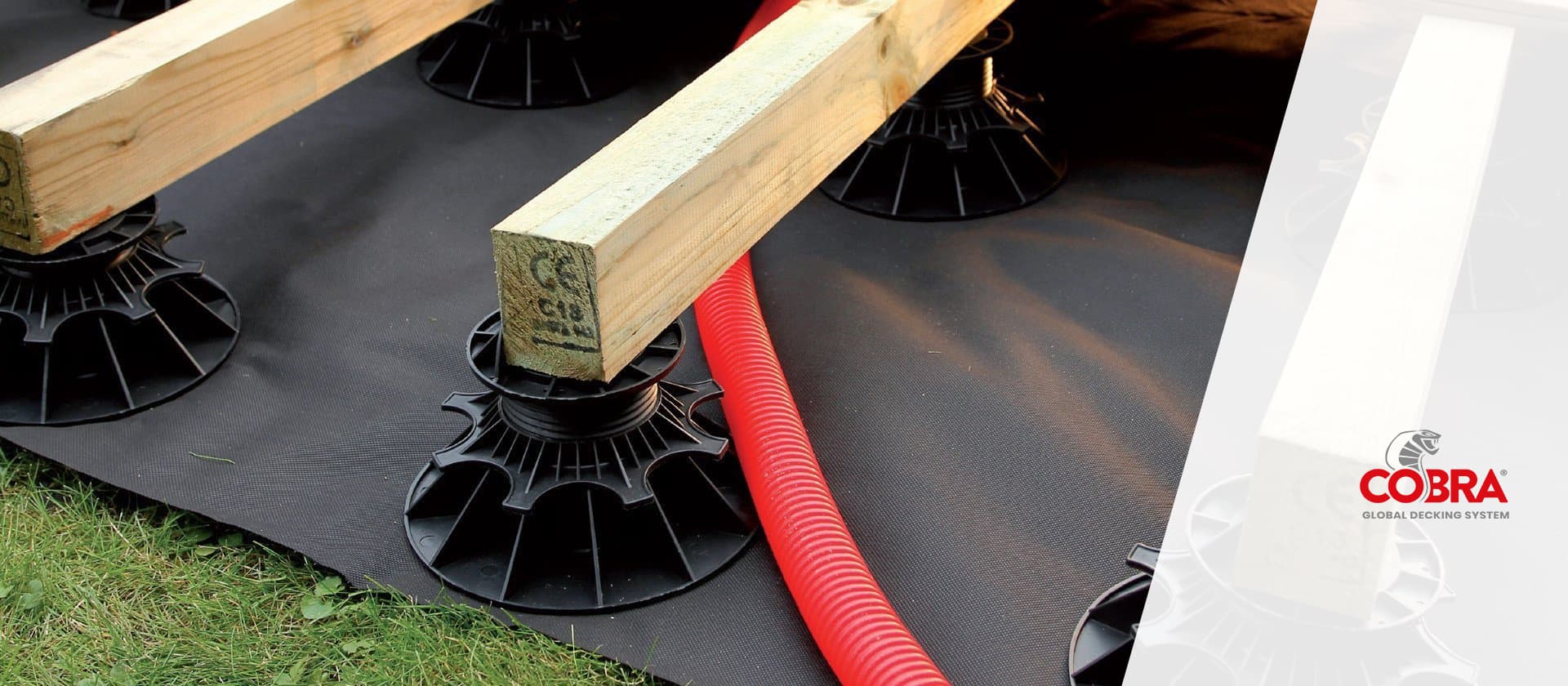

Developed by wood engineers, the NIVO® range provide you with a complete package of adjustable pedestals specially designed for the installation of wooden or composide decking on concrete screed or on stabilized ground.
Ranging from 25 to 240 mm in height, all our pedestals are adjustable in height and guarantee the robustness and precision of the installation of your terrace. The quality of the material used allows us to ensure resistance to all weathers, U.V and remarkable stability, a guarantee of the quality of our products.
The NIVO® pedestals are calibrated and sized to have maximum quality. Indeed, the base of the pedestal (Ø20cm = 314cm²) is wide enough to avoid the sinking of the structure in the natural soil. And the diameter of the rotation screw is one of the widest on the market, thus offering excellent stability of the stud.
Thanks to its rotating screw system, the NIVO® pedestal makes installation very easy. The adjustment of the level of the structure is simplified to the maximum.
Strong and resistant to a load of at least one ton, our pedestals are height adjustable and easy to install. And in order to complete the range of heights, a 6 centimeters extension can be inserted between the base and the support.
These must be laid on a stabilized ground (waterproofing, concrete, sand, topsoil, etc.). To avoid the weeds growth under the deck it is strongly advised to lay a geotextile felt .
And to know the exact number of pedestals needed for your project, use our online calculator.

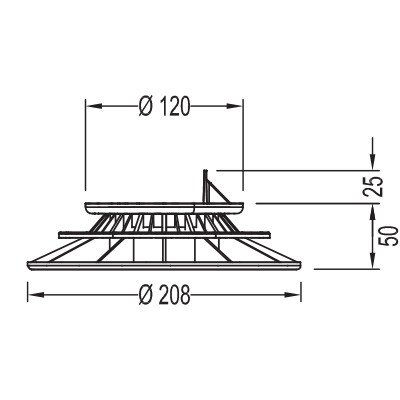

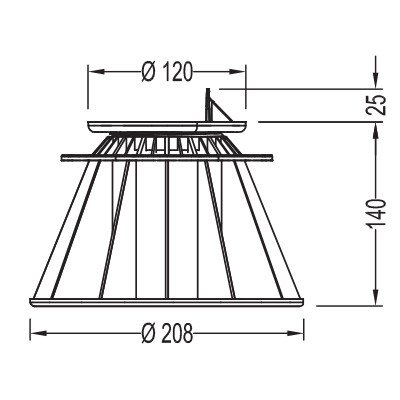

Technical specifications
Depending on the size of the pedestal
-

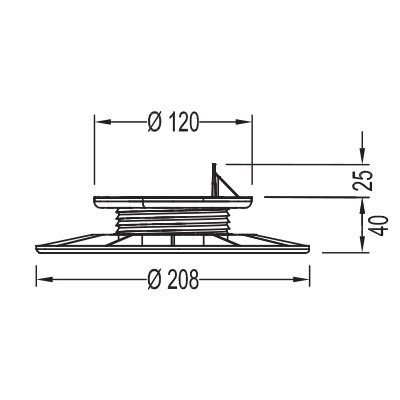

25 - 40 mm- - min opening: 25 mm
- - max opening: 40 mm
- - weight: 0.17 Kg
-

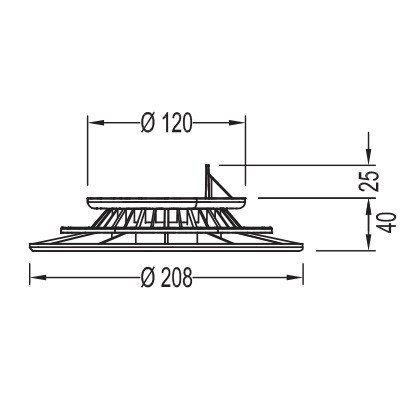

40 - 60 mm- - min opening: 40 mm
- - max opening: 60 mm
- - weight: 0.23 Kg
-
50 - 80 mm- - min opening: 50 mm
- - max opening: 80 mm
- - weight: 0.26 Kg
-
80 - 140 mm- - min opening: 80 mm
- - max opening: 140 mm
- - weight: 0.33 Kg
-
140 - 230 mm- - min opening: 140 mm
- - max opening: 230 mm
- - weight: 0.51 Kg
-
140 + extensions- - min opening: 230 mm
- - max opening: 530 mm

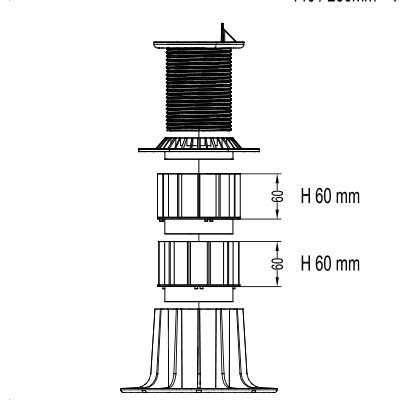

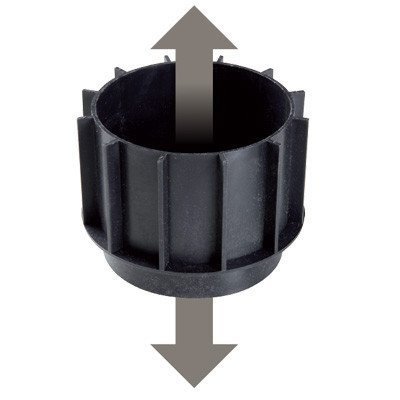

60mm extension for 140-230mm stud. Stack up to 5 risers on top of each other to reach a maximum height of 530 mm while keeping a stable base.

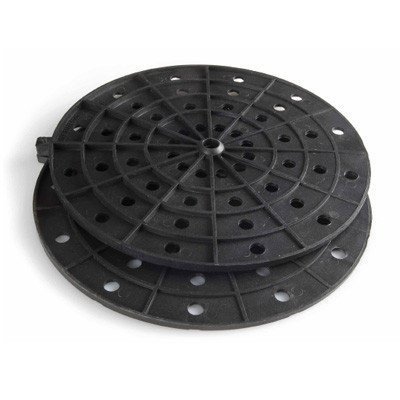

The NIVO® slope corrector ensures a correction from 2 to 5% of height difference. The connection with the base of the pedestal is effective allowing a good stability of your deck.
